Welcome to Oberon.
A virtual company on the internet.

Oberon is not just any company, it is a one-of-a-kind virtual company that is revolutionizing the world of embedded software development. Its name, inspired by the moon of Uranus and the king in Shakespeare's play, evokes a sense of innovation and creativity.

With its headquarters in Sweden, Oberon is a single person company that is dedicated to developing and implementing advanced embedded software, including digital filters and real-time kernels. Its software is used in a wide range of applications, from wireless base stations and mobile phones to measurement systems and even video games.

At Oberon, software is more than just code. It is an adventure in imagination, a chance to unleash your creativity and explore the limits of what is possible. As Winston Churchill once said, "The empires of the future will be the empires of the mind." And at Oberon, you can be the emperor of your own mind.

Discover our top-notch double complementary Lattice Wave filter implementations.

These exceptional filters are not only used in our own measurement systems for Road Survey Technology, but are also available for sale right now.

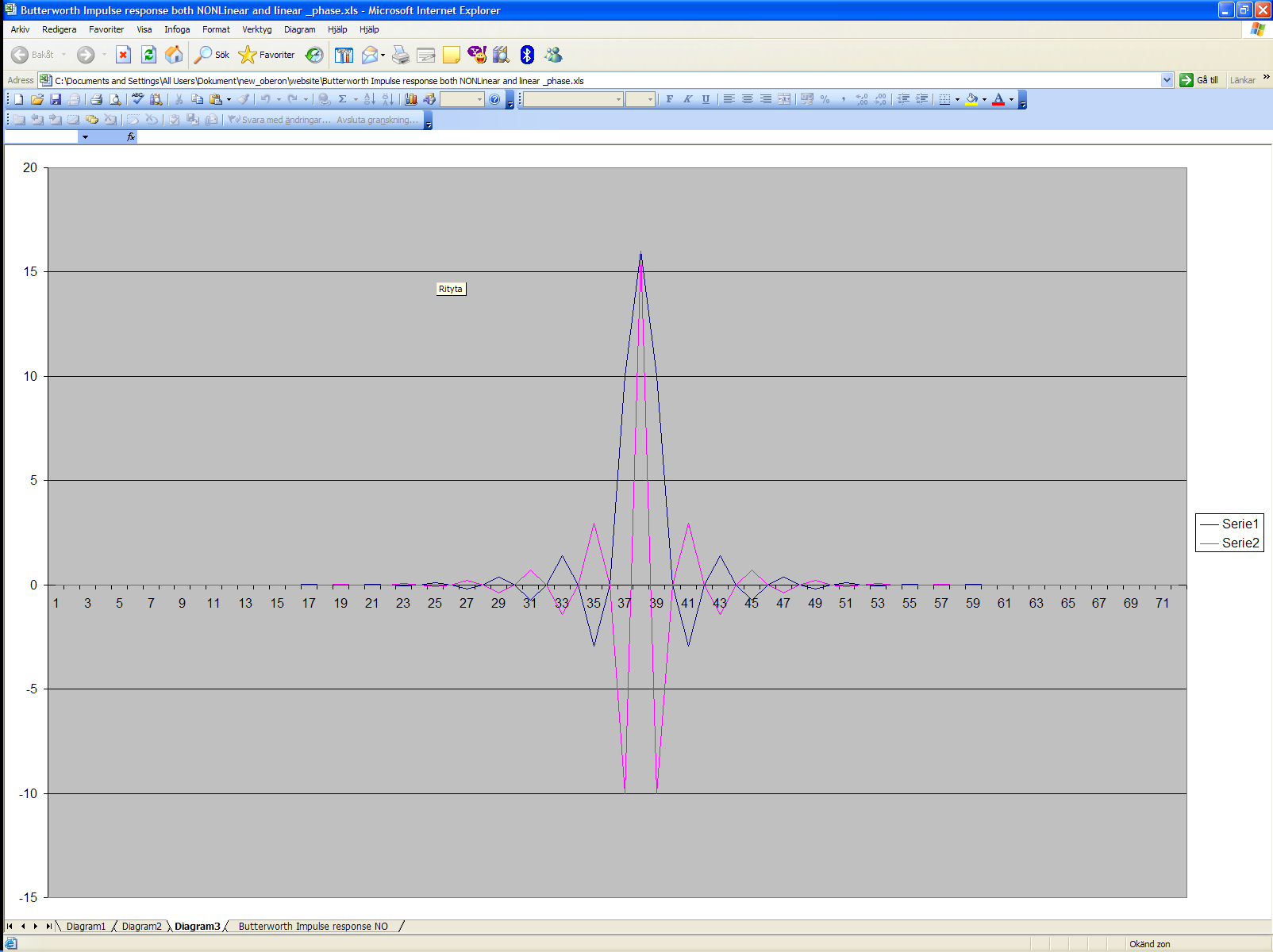

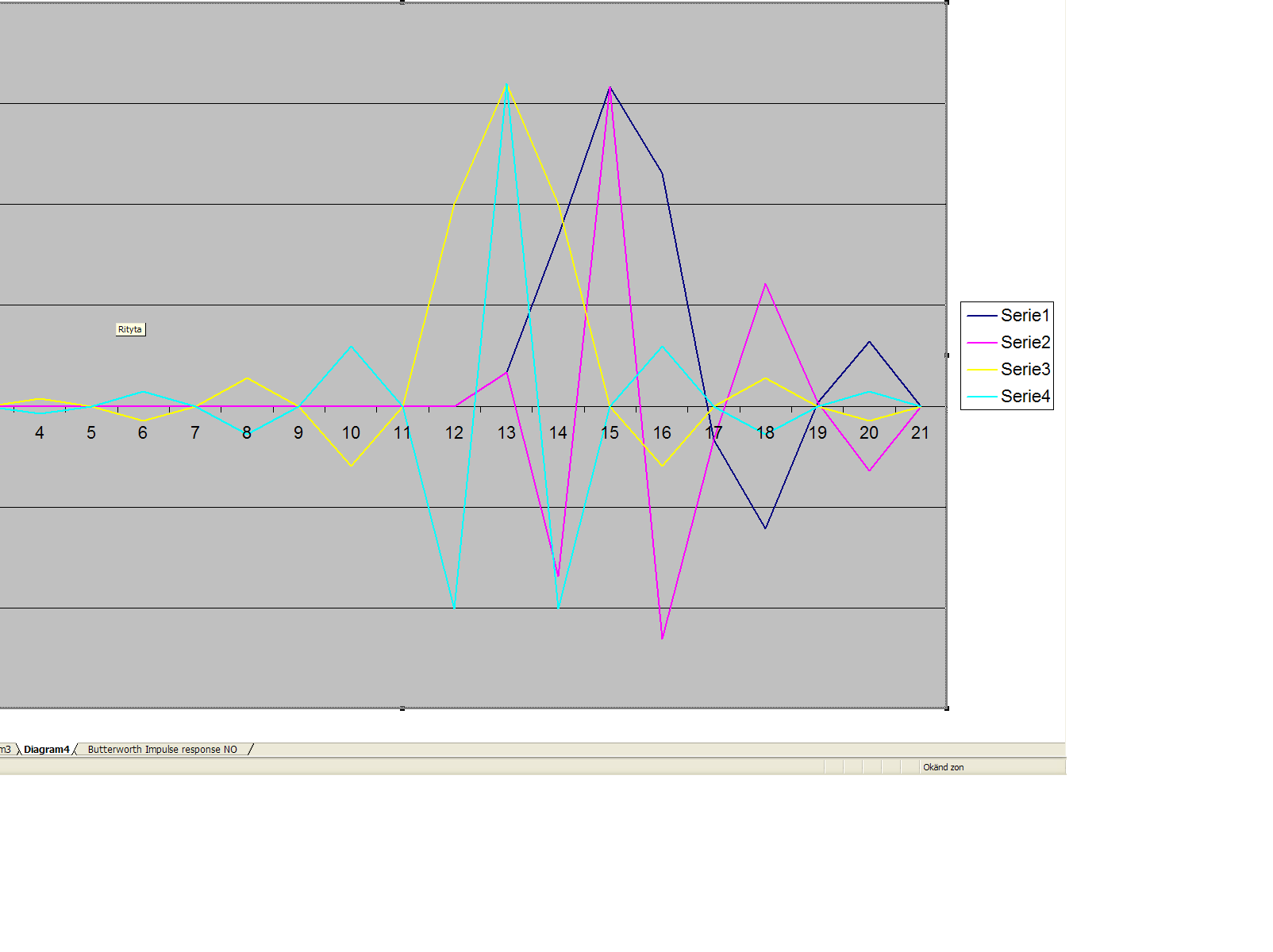

The zero-phase filtering can remove any effects of low-frequency noise or vibrations that may interfere with the measurement, resulting in more precise and reliable results. This makes them very useful in various fields such as manufacturing, automotive, and aerospace engineering, where surface quality is important.

Seventh Order Lattice Wave filter

Some of our customers

  • Nokia Mobile Phones Denmark
  • Ericsson Cables
  • Ericsson Radio systems
  • Cisco Systems
  • Qeyton Systems
  • Zarlink Semiconductor
  • Institute Optical Research
  • Vägverket

Speciality

Are you looking for an expert in digital signal processing (DSP)? Look no further! I specialize exclusively in DSPs from none other than Texas Instruments - the industry leader. And let me tell you, their inbuilt debugging tools (JTAG) are second to none. With my expertise and the power of TI, your project is sure to exceed your wildest expectations.

But that's not all - I'm a versatile professional. Although I now have a leadership role, I still occasionally dabble in software work. And when someone recently asked me if I'm any good at communications, I was ready to answer. At first, I thought they meant human communications - something that's just as important as technical expertise, if not more so. But as it turns out, my skill set includes a deep understanding of various communication technologies as well. So if you're looking for a well-rounded professional who can do it all, look no further.

In Person

I started with electronics at the age of 14 and went for a four year technical gymnasium in telecommunications. After that, I pursued my Master's degree in Computer Science and Engineering. With my M.Sc., I joined Philips and spent a decade working with real-time operating systems, computer language implementations, software tools, and more.

Later, I left Philips and started Oberon, where I worked as a software consultant specializing in digital signal processors (DSP), embedded systems, and real-time operating systems.

During my ten years as a consultant, I became curious about why some people are much more efficient in writing code than others. This led me to explore Neuro-Linguistic Programming (NLP) and Ericksonian hypnosis in the year 2000.

From there, I found another interest - Using YOUR Brain for a Change.

In 2003, I earned an Executive Master of Business Administration degree and a Master's degree in Management and Organization. I enjoy challenging myself and collecting academic titles, much like some people collect stamps.

Learn The Fundamentals

Web designers and web developers like Bootstrap because it is flexible and easy to work with. Its main advantages are that it is responsive by design, it maintains wide browser compatibility, it offers consistent design by using re-usable components, and it is very easy to use and quick to learn.



Learn Vanilla Javascript

The vanilla script is one of the lightest weight frameworks ever. It is very basic and straightforward to learn as well as to use. You can create significant and influential applications as well as websites using the vanilla script.



Adventure number One

1. Oberon's Highway and Airfield Pavement Technology
2. Project level Pavement Measurements of Highways and Airfields
3. Airfield Measurements giving data for the TAKEOFF application

Profilometers with zero-phase filtering are excellent because they provide high resolution and accuracy in measuring surface topography and roughness. The zero-phase filtering can remove any effects of low-frequency noise or vibrations that may interfere with the measurement, resulting in more precise and reliable results. This makes them very useful in various fields such as manufacturing, automotive, and aerospace engineering, where surface quality is important.

Stockholm, Sweden.

We ceased our measurement operations, and for good reason. You see, the esteemed Swedish Road Administration, known as Vägverket, requested a proposal for the measurement of over 20 objects, and were provided with an excellent price for that quantity.

However, when the time came to execute the project, they had only booked 14 measurements, leading to a flawed calculation for the originally intended 20 objects. It seems they believed themselves to be clever in securing a lower price per object, but in reality, they were being sly and deceitful. As a result, I chose to discontinue my services for those sneaky devils.

Axon1 is a cutting-edge, one-track road surface profilometer that revolutionizes the way road irregularities are measured. This innovative device utilizes a state-of-the-art combination of laser, accelerometer, and distance sensors to deliver unmatched precision and accuracy in measuring road profiles of short lengths, ranging from 10-50 kilometers.

Designed with ease of use and portability in mind, Axon1 boasts a total weight of under ten kilos (20 lb.), making it easily transportable to and from the measurement car. Its rapid deployment profilometer is also ideal for use in airfields, as I experienced while measuring an airstrip at Arlanda, Stockholm.

What sets Axon1 apart from its competitors is its unique approach to measurement. Unlike other profilometers that use optical triggers to start the measurement, Axon1 employs a fixed point located 500 meters from the object start and measures the number of wheelpulses from that point to the object start. This method ensures that the measurement starts accurately and promptly, saving both time and money.

During development, an old record player was repurposed to simulate road cracks and generate input data for the laser. The laser was expertly mounted to measure the height differences generated by the notches rotating under it. This simple yet effective approach made it easy to change the input signal for the laser by swapping out records on the record player.

Calibrating the system was a breeze, with the laser being calibrated by a known in height metallic cube, and the accelerometer calibration being done by moving the car up and down while measuring the up and down movement with the freshly calibrated laser. The calibration value is then calculated by correlating the laser measurements with the accelerometer to negate the car's up and down acceleration. The entire calibration process only takes a minute, making it highly efficient and easy to use.

Axon1 is the perfect choice for road measurement, even in the toughest of environments. The device is enclosed in a sturdy box, making it easy to handle in dirty and wet conditions. Overall, Axon1 is an excellent choice for anyone seeking the ultimate in road surface profilometry, delivering unmatched accuracy, efficiency, and convenience.

Thanks to the fast and innovative development of DSP technology, combined with the precision of state-of-the-art lasers and accelerometers, Oberon has achieved a groundbreaking system that accurately measures longitudinal road surface properties at normal traffic speeds. The AXON1 measurement system, developed by Oberon, meets the highest quality requirements and incorporates as few self-developed parts as possible, utilizing already-proven high-quality components available in the market, resulting in a cost-effective development process without compromising quality.

Oberon's hardware and software components are seamlessly integrated to create a sophisticated measurement system that can quickly respond to customer needs. The development process involved some effort, particularly for the analogue parts, but the end result is a product that exceeded expectations and proved to be a perfect fit for road "object" measurement requirements.

For project level road measurement, accuracy and quality are of paramount importance. It is essential to compare the road data with future measurements of the same project, which is why repeatability and equipment stability are critical for providing consistent results over a number of years. The transducers' resolution must be extremely precise, and the software algorithms must be executed with floating-point accuracy to avoid any distortion of the measurement data.

On the other hand, road network measurements provide a statistical view of the measured road network and identify the location of bad road parts, while the project level road measurement focuses on determining a specific object's deterioration over time. Project level data is analyzed at the smallest level, ensuring the highest level of scrutiny, whereas road network measurements offer an overall view of a country's road conditions.

In summary, Oberon's AXON1 system, developed using cutting-edge technology and top-quality components, offers an unparalleled solution for longitudinal road surface measurements. Its accuracy, repeatability, and stability make it ideal for project level road measurement and analysis, providing the necessary data to ensure high-quality and safe road networks.


A generic square placeholder image with rounded corners in a figure.
Measurement car circa year 2000.

AXON1 was expertly installed onto a lowered AUDI vehicle with firmer suspension in a matter of minutes, showcasing its remarkable efficiency. Unlike traditional sensor boxes that require special equipment to be mechanically mounted onto the tow ball, AXON1 was ingeniously secured onto the car's rear transport mount, further highlighting its advanced design.

The Swedish National Road Administration, SNRA, has recognized AXON1's exceptional capabilities in measuring object measurements, as demonstrated through a rigorous project-level survey. At the time of its qualification in December 1997, AXON1 was one of only two companies approved for this task.

AXON1 underwent an extensive evaluation by the prestigious VTI, Road and Transport Research Institute, where it repeatedly measured fifteen different road strips at various speeds over a two-week period in May 1996, totaling over 150 measurements. The results of this evaluation were presented in a comprehensive report, dividing the qualification into two parts, measuring road networks and road objects, with the latter being a novel concept at the time.

The ability to measure road objects, or a stretch of road that could be newly constructed, allowed for an accurate assessment of its compliance with SNRA's quality requirements. AXON1's exceptional high-accuracy equipment facilitated the measurement of IRI for one of the three critical road properties for object measurements: crossfall, IRI, and rutdepth, while other road properties were optional.

For those interested in learning more about the intricacies of IRI and longitudinal profile, a detailed description is readily available on the University of Michigan's website. Overall, AXON1's impressive performance and versatility have established it as a leader in the field of road measurement technology.

AXON1 is an exceptional measurement tool that boasts a range of advanced features to ensure that road conditions are accurately assessed. With its precise and efficient measurement capabilities, AXON1 is capable of measuring and saving longitudinal profile data at intervals of just five or ten centimeters, as well as calculating twenty meters RMS values for the profile across different wavelength bands. In addition, AXON1 can calculate the international road unevenness value IRI, providing an accurate measure of the road's condition over a distance of twenty meters. The road profile is filtered in a novel way giving a phase linear filtering. Thus, when using the road profile data the irregularity is shown in the data at the exact spot where it is on the road. The measurement shows a true profil which is not distorted by the measurement. This positive fact is very unusual.

Furthermore, AXON1 is equipped with the ability to compute the new texture value (MPD) according to the ISO standard, ensuring that road conditions are measured to the highest standards of accuracy. The device is able to identify irregularities with long wavelengths in the road's longitudinal profile, indicating potential issues with soil movement beneath the surface.

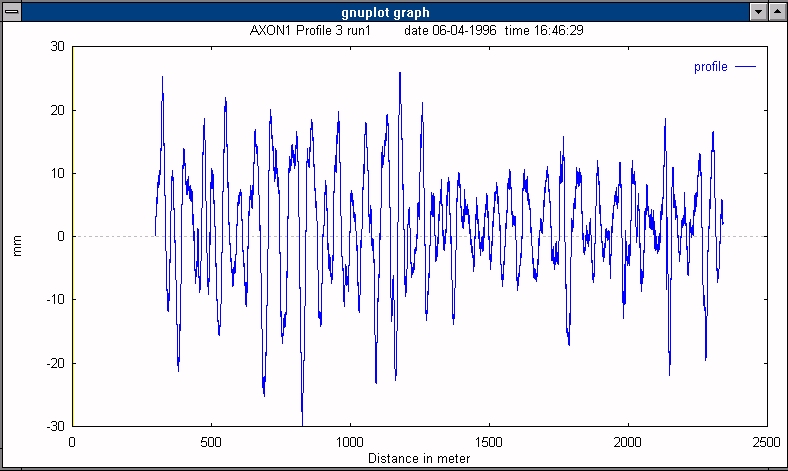

AXON1's measurement variables are comprehensive, including the IRI, RMS (with four values for four different wavelengths), Textur (MPD), longitudinal profile (at 5 cm or 10 cm intervals), and distance (in millimeters). The main measurement device, the SELCOM SLS5000 laser, is incredibly precise, with a resolution of 50 micrometers. In addition, the device is equipped with a top-of-the-line accelerometer with 1 micro g resolution, which eliminates any up and down movement caused by the car to ensure that the measurement data is as accurate as possible.

AXON1 also utilizes a wheel pulse transducer, which boasts a resolution of better than 1 pulse per millimeter, providing an incredibly precise measure of the road's condition. The data collected by AXON1 is saved and post-processed, and thanks to the device's powerful floating point digital signal processors, the data can be plotted live on a display, providing real-time insights into the road's condition.

Overall, AXON1 is a cutting-edge measurement tool that is highly accurate, reliable, and capable of providing comprehensive insights into the condition of roads. With its advanced features and precise measurement capabilities, AXON1 is an excellent choice for anyone seeking to measure and assess road conditions with the highest level of accuracy.
